Manifold Blocks
Custom, cartridge-valve and CETOP sub-plate manifold blocks that replace the pipework between valves with drilled galleries, for smaller, cleaner and leak-free hydraulic circuits.
3D model based on Hydraulic Manifold Block
Overview

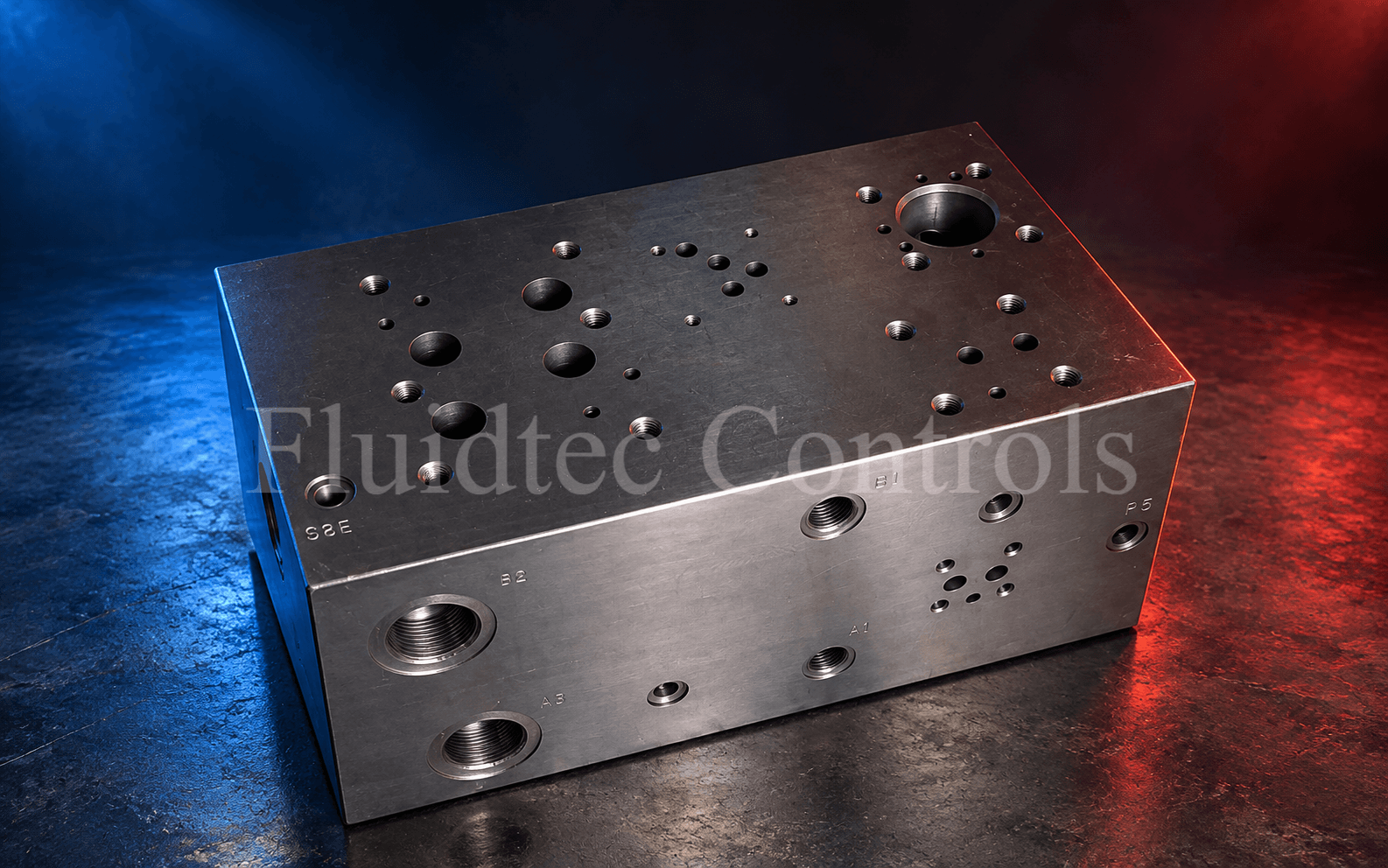

A manifold block routes oil between valves through galleries drilled inside one solid block, instead of through pipes and fittings run between separate components. The result is a hydraulic circuit that is smaller, easier to service and has far fewer joints that can leak.
We design each block from your circuit diagram and valve list, machine it, deburr and clean every gallery, and pressure-test the finished block before it ships, either bare or fully assembled with valves.
Capabilities
- Custom blocks designed from your circuit diagram
- Aluminium, steel and ductile iron blocks
- Working pressures up to 350 bar
- Cartridge cavities and CETOP / ISO 4401 mounting faces
- BSP, metric and SAE port threads

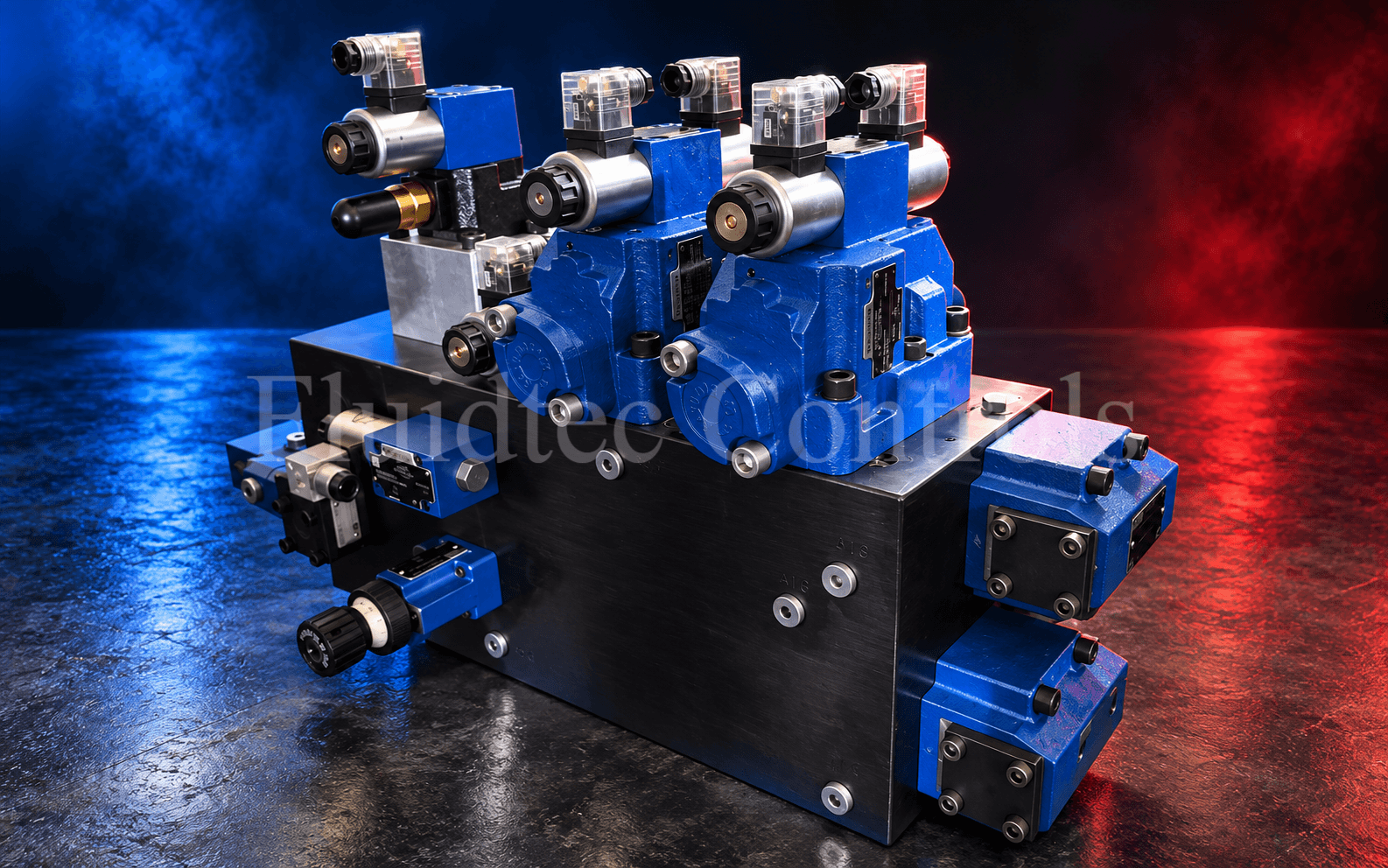

- Supplied bare or assembled with valves, pressure tested
Manifold Blocks we manufacture
Each variant is available across the bore, tonnage or capacity range shown — open a variant for the full specification sheet.
Have a spec sheet or a problem to solve?
Send us your drawing, duty cycle or a description of the process — our engineering team will get back with a configuration and a quote.
