Quick Die Change Systems
Hydraulic clamping, roller-ball transfer tables and cart-type QDC systems that turn a multi-person, hours-long die change into a single-operator job measured in minutes.

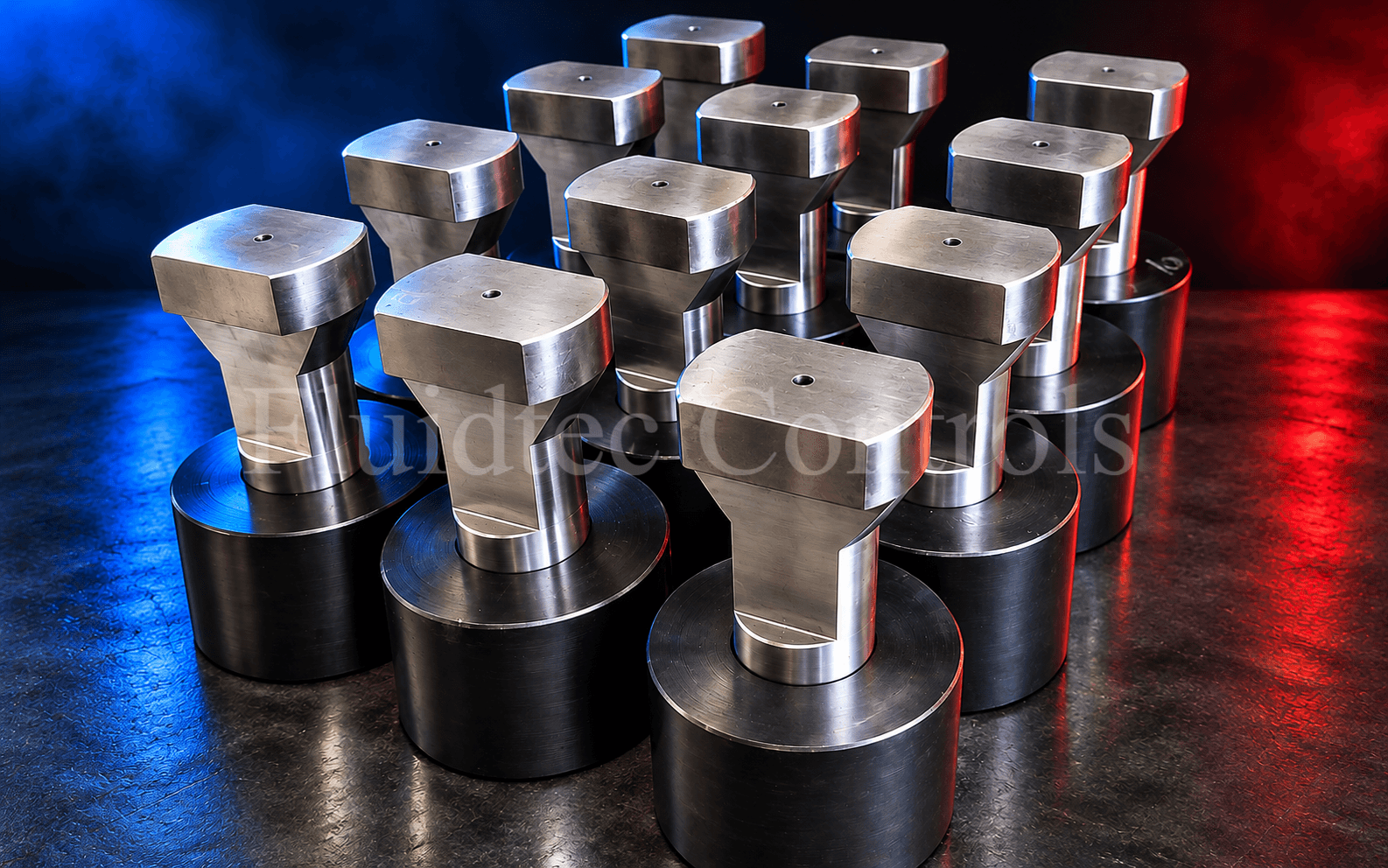

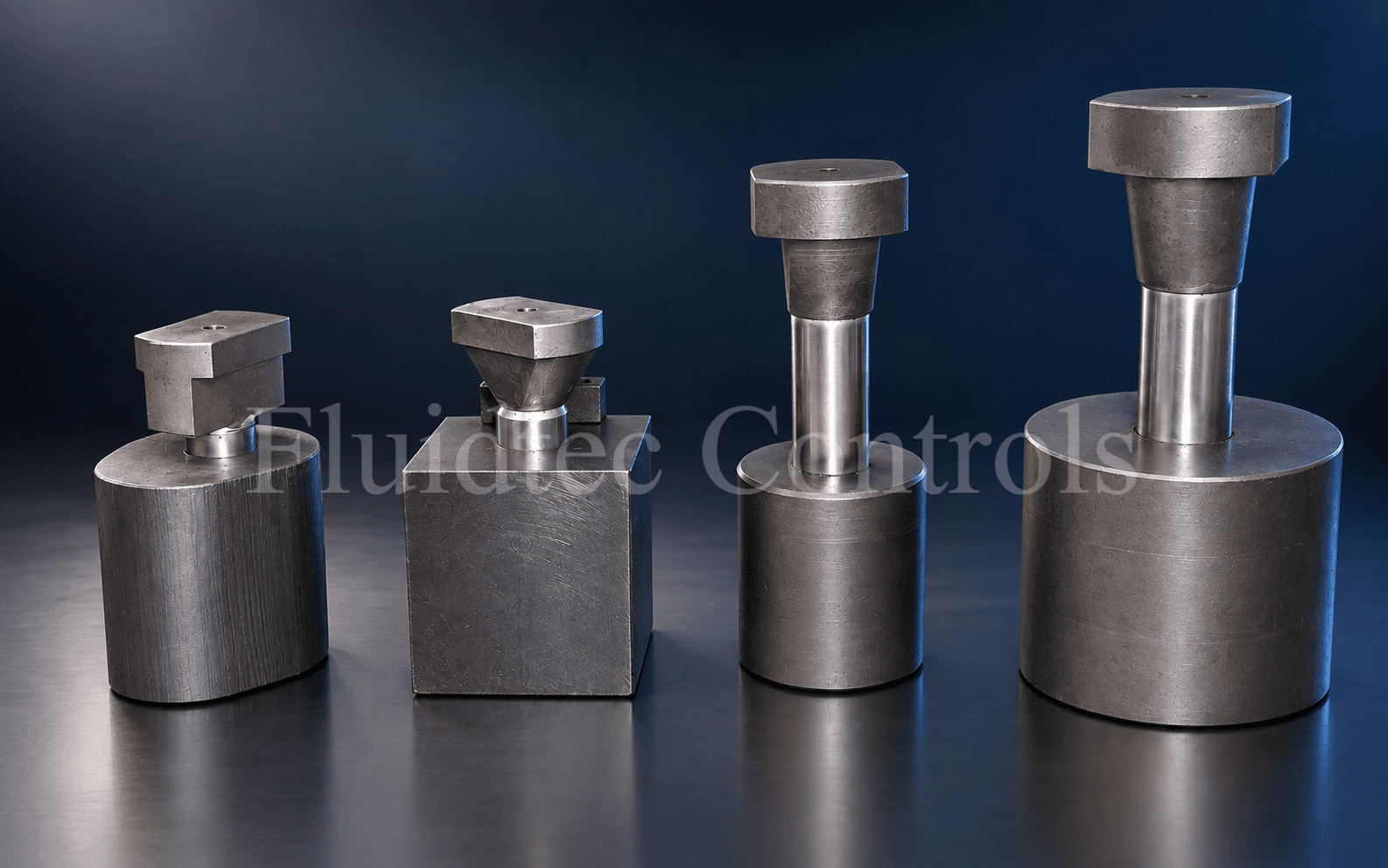

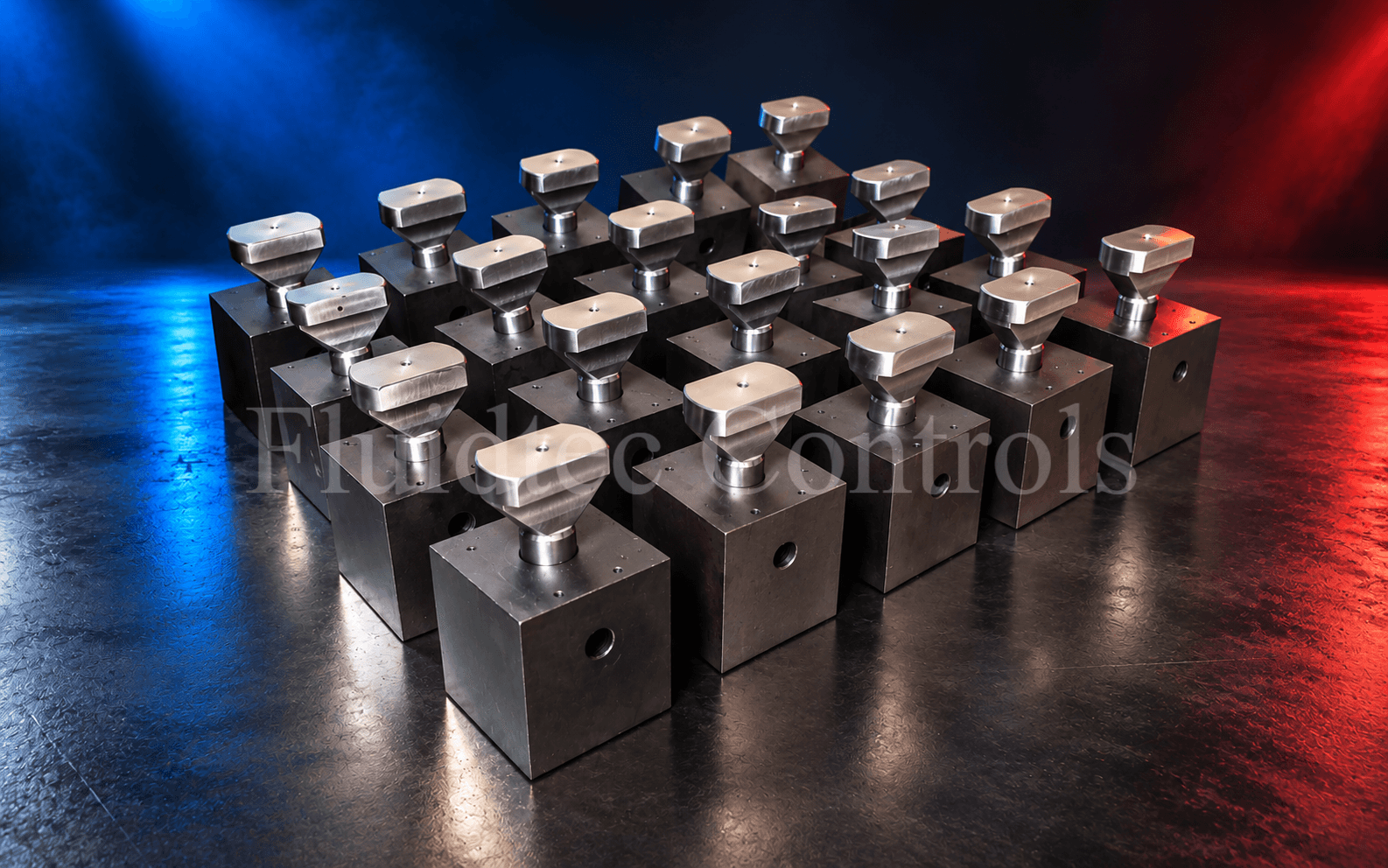

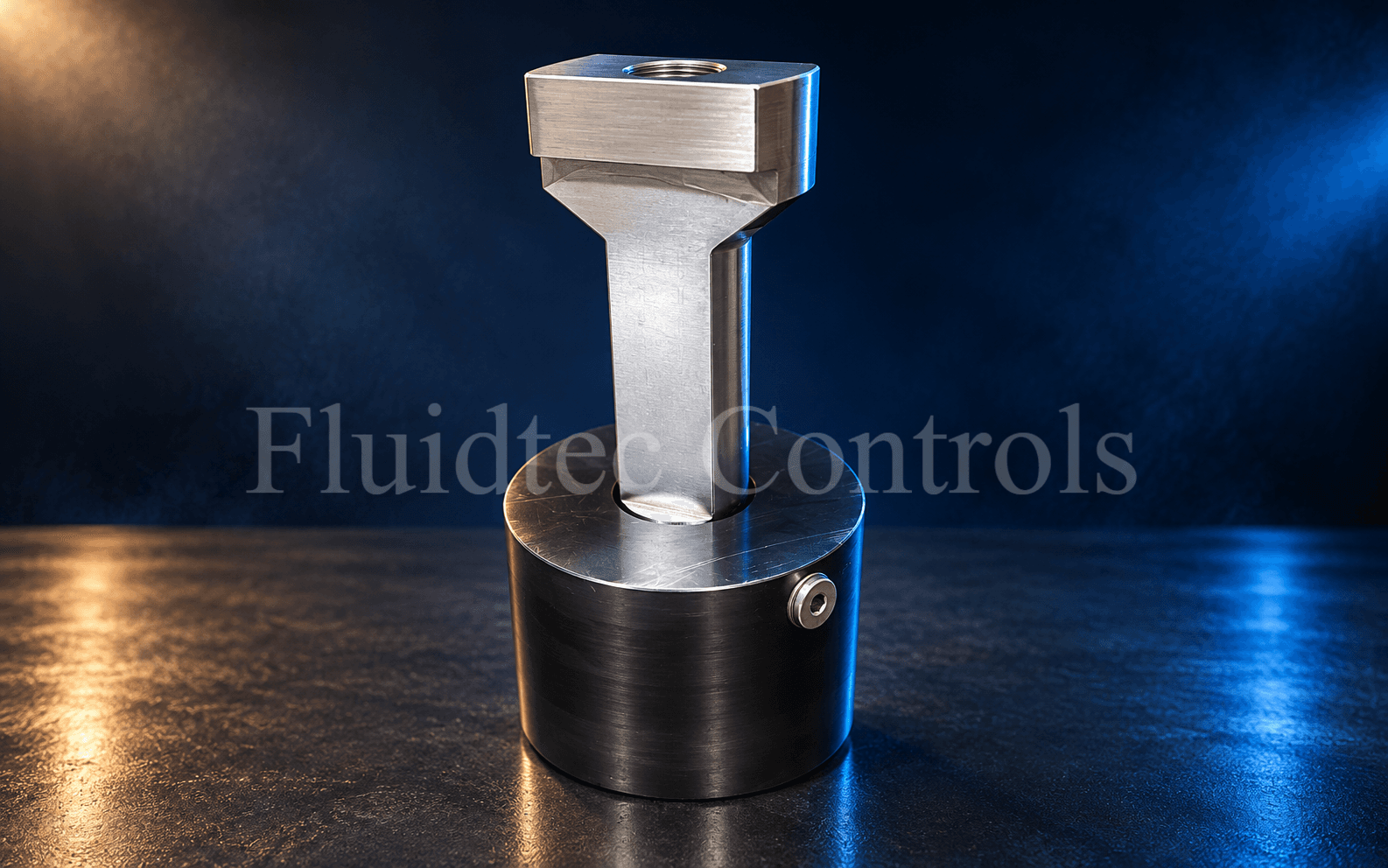

3D model based on Hydraulic Die Clamp
Overview
Die changeover time is lost production time, and most of it is spent aligning, clamping and unclamping dies by hand. Our QDC systems replace manual T-slot clamping with hydraulic clamps, powered transfer tables and standardised interfaces so the changeover itself becomes the fast part of the job.
Every system is engineered against your existing press bolster dimensions and die inventory, with safety interlocks tied into the press control so a die can never be run in a partially clamped state.
Capabilities
- Clamping forces from 5T to 100T per clamp
- Manual, semi-automatic and fully automated systems
- Retrofit engineering for existing press bolsters
- Safety interlocks integrated with press PLC

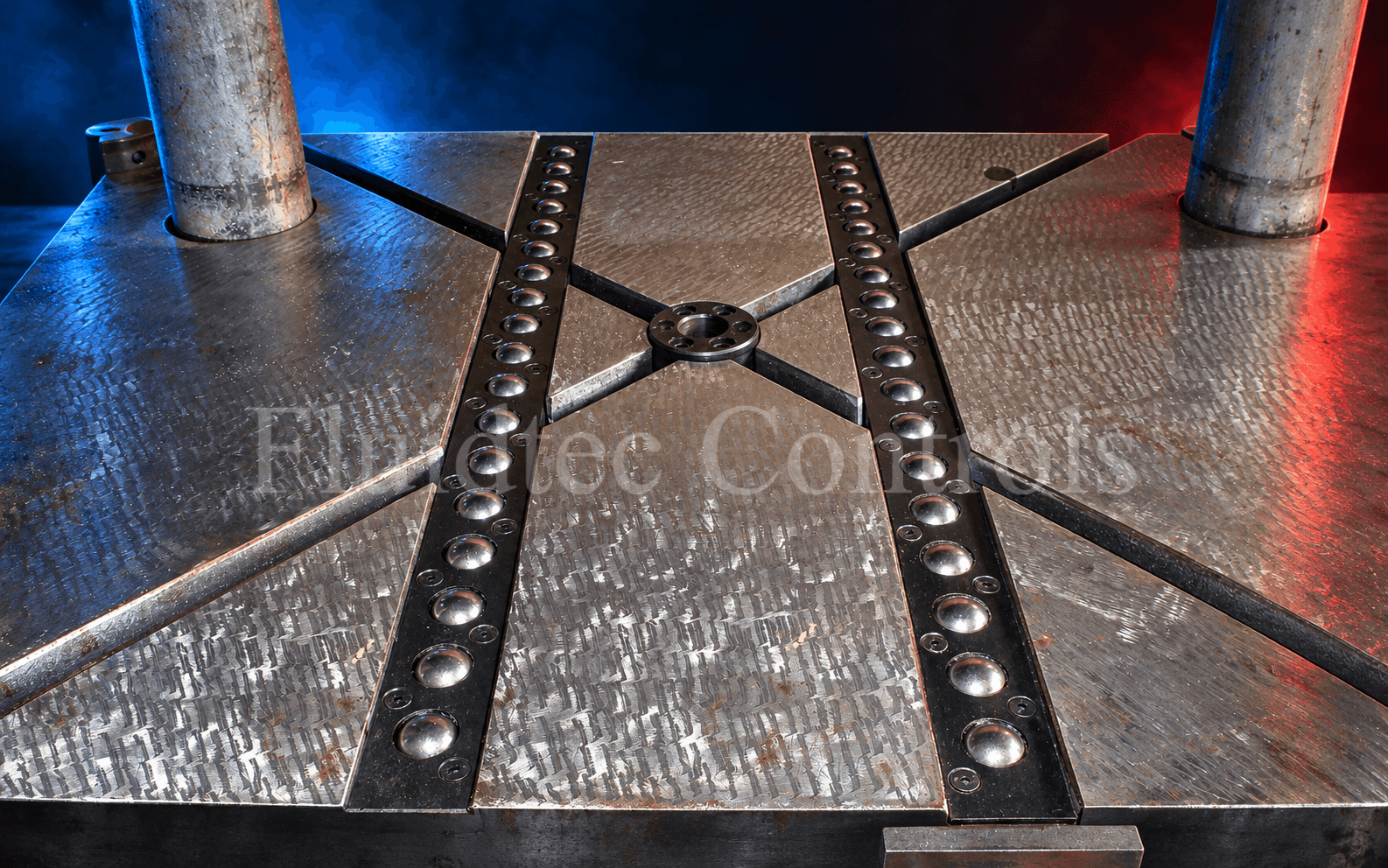

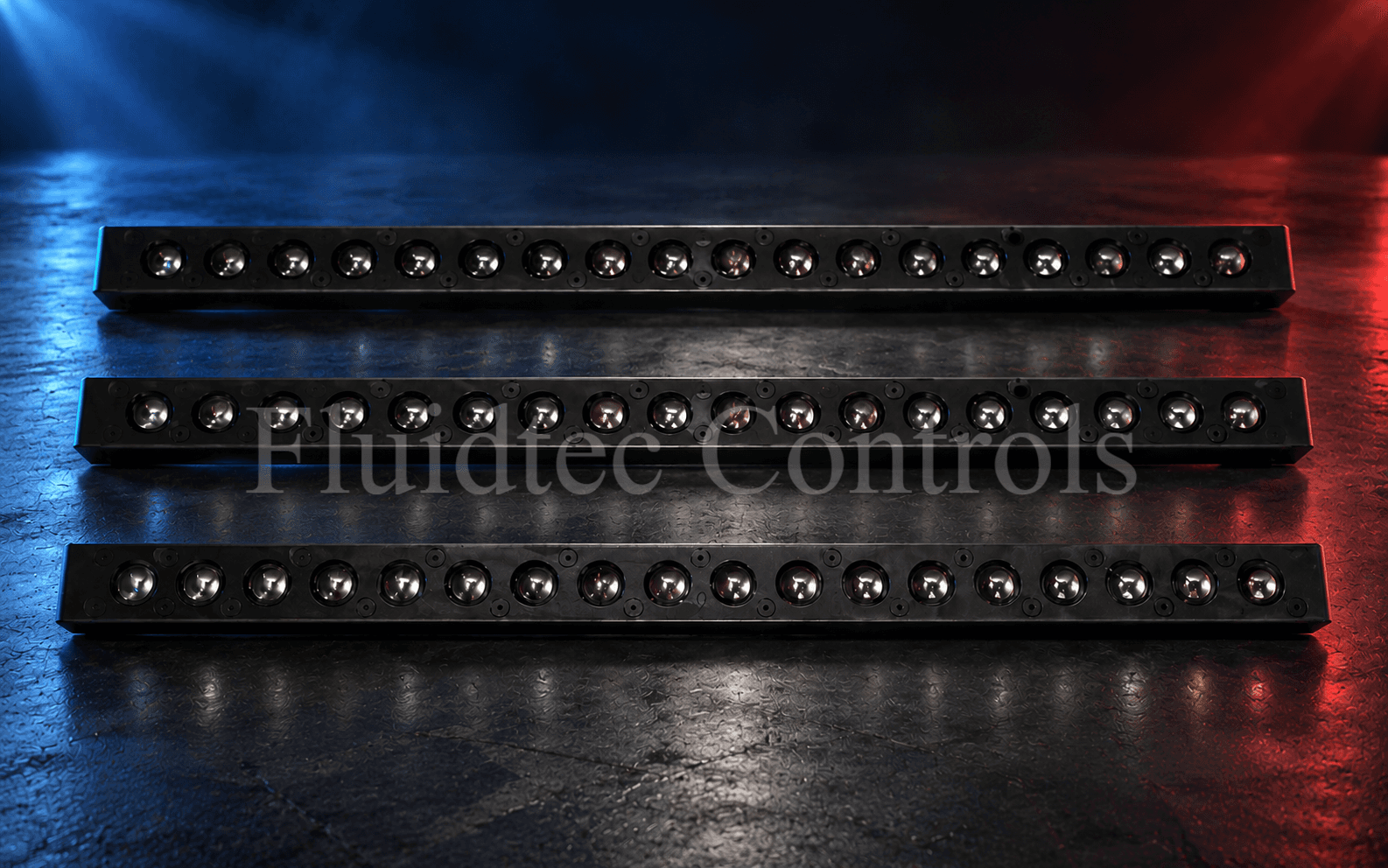

- Die cart and roller-ball transfer table options
- Clamp-position sensing with HMI status display
Quick Die Change Systems we manufacture
Each variant is available across the bore, tonnage or capacity range shown — open a variant for the full specification sheet.
